Rigid plastic Pelletizing Line

Recycle Plastic Waste to Make Profit

Get Quotation Now
The production line adopts European design and advanced technology. It is mainly used for clean PE PP flakes, scraps and crushed, washed, dried HDPE/LDPE/PP/PS/ABS materials. The whole line can be specially designed according to the cleanness of the customer’s raw material and the quality requirement of the final product.

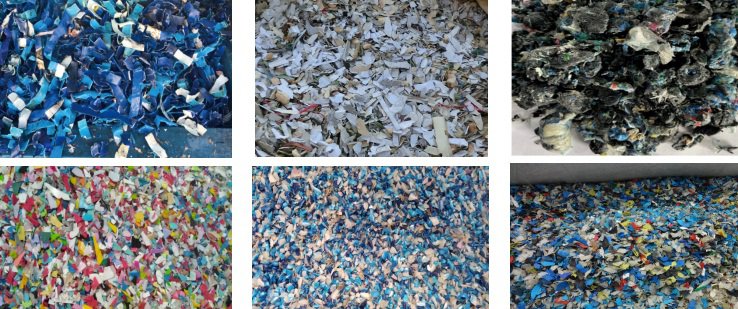

APPLICABLE MATERIALS

BRIEF DESCRIPTION

The production line adopts European design and advanced technology. It is mainly used for clean PE PP flakes, scraps and crushed, washed, dried HDPE/LDPE/PP/PS/ABS materials. The whole line can be specially designed according to the cleanness of the customer’s raw material and the quality requirement of the final product.

WORKING PROCESS

UNIT INTRODUCTION

Screw loader and Dosing Feeder: Use to loading flakes into dosing feeding. Dosing feeding the material into extruder. Keep the extruder more stable working

Dosing feeder: Feeding flakes into extruder smoothly and evenly

Extruder: Made by sturdy frame, heavy. No vibrating when machine running.

1.Hydralic screen exchanger: Filtering material impurity 2.Die mould: Material come out in noodles 3.Cooling tank: Water cooling the material

1.Fan Dryer and pellet cutter System: The noodle pelletizing unit extrudes the strands through the single screw extruder, cools it in the water tank along the way, then dries it through the fan dryer, and finally enters the pellet cutter. 2.Vibration Screen: Screen out the bigger size pellet

Intelligent Control System: With CE/TUV/SGS/ISO standard. 1. For electric control of the whole line. 2.Main electrical units: Siemens, Schneider, ABB, Omron, RKC, etc.

TECHNICAL DATA

PRODUCT PARAMETERS(SINGLE STAGE PELLETIZING LINE):

Model SJ100 SJ120 SJ150 SJ175 SJ185
screw diameter(mm) 22-37 37-75 45-110 55-132 75-160
screw L/D Φ100 Φ120 Φ150 Φ175 Φ185
main motor(kw) 20-33 20-33 20-33 20-33 20-33
dosing screw motor power(kw) 0.75-1.1 1.1-1.5 1.5-2.2 1.5-2.2 2.2-3
exhaust method vacuum or natural exhaust vacuum or natural exhaust vacuum or natural exhaust vacuum or natural exhaust vacuum or natural exhaust
screen changer plate or pillar type hydraulic screen changer plate or pillar type hydraulic screen changer plate or pillar type hydraulic screen changer plate or pillar type hydraulic screen changer plate or pillar type hydraulic screen changer
pelletizing type water-ring or noodle pelletizer water-ring or noodle pelletizer water-ring or noodle pelletizer water-ring or noodle pelletizer water-ring or noodle pelletizer
capacity（kg/h） 100-200 200-300 300-500 500-600 700-800

PRODUCT PARAMETERS(TWO STAGE PELLETIZING LINE):

Model SJ100+SJ100 SJ120+SJ120 SJ150+SJ150 SJ175+SJ175 SJ185+SJ185
Screw diameter(mm) Φ100+Φ100 Φ120+Φ120 Φ150+Φ150 Φ175+Φ175 Φ185+Φ185
mother extruder screw L/D 20-33 20-33 20-33 20-33 20-33
baby extruder screw L/D 9-12 9-12 9-12 9-12 9-12
mother extruder motor power(kw) 30-37 37-75 45-110 55-132 75-160
baby extruder motor power(kw) 15-22 22-37 37-45 45-55 55-75
exhaust method vacuum or natural exhaust vacuum or natural exhaust vacuum or natural exhaust vacuum or natural exhaust vacuum or natural exhaust
screen changer plate or pillar type hydraulic screen changer plate or pillar type hydraulic screen changer plate or pillar type hydraulic screen changer plate or pillar type hydraulic screen changer plate or pillar type hydraulic screen changer
pelletizing type water-ring or noodle pelletizer water-ring or noodle pelletizer water-ring or noodle pelletizer water-ring or noodle pelletizer water-ring or noodle pelletizer
capacity(kg/h) 100-200 200-300 300-500 500-600 700-800
